EXD-DO800 Digital Output Module
Industrial 8-channel digital output module designed for high-reliability actuator control, solenoid operations, and machine automation.

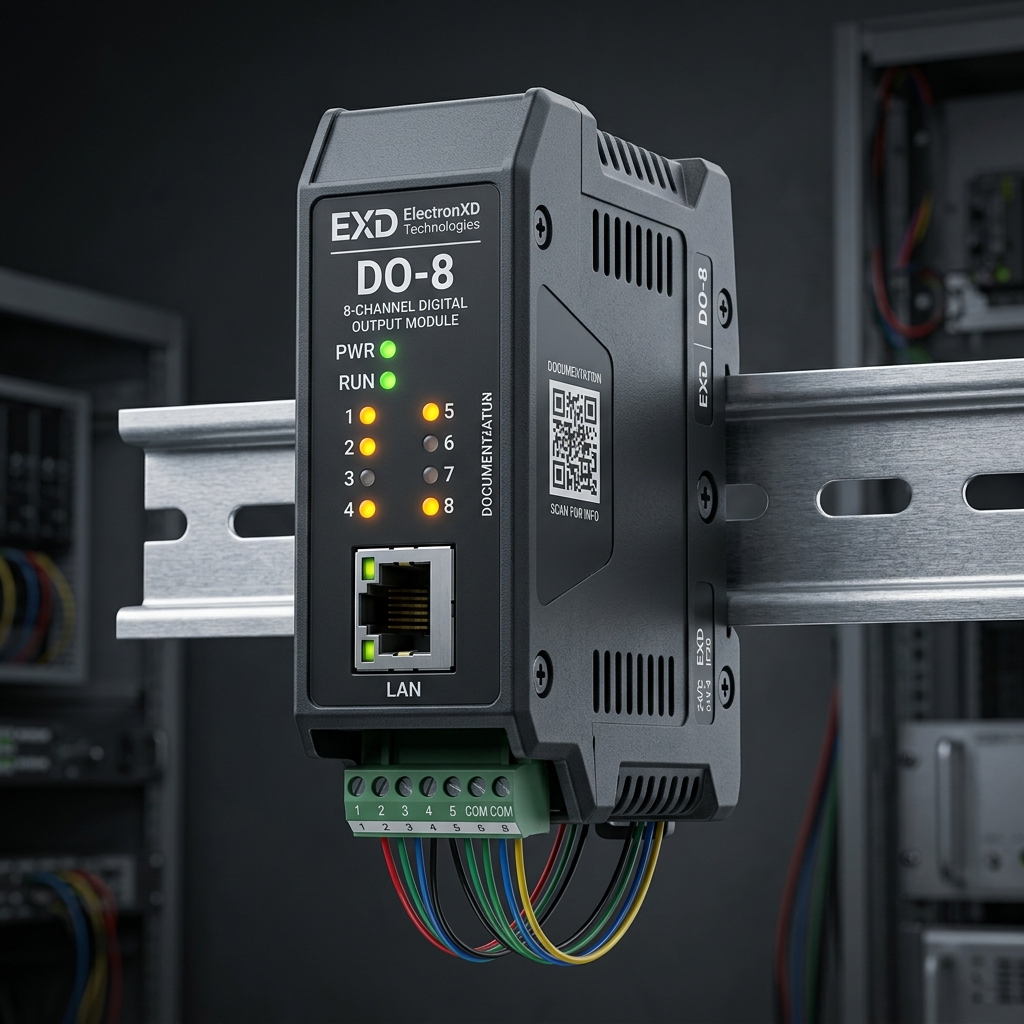

RENDER::EXD-DO800
Industrial Features
8-Channel 24VDC digital transistor outputs
High-current PNP outputs (0.5A per channel)
Short-circuit and overcurrent protection per channel
Thermal shutdown protection built-in
Configurable fail-safe output state
3kVrms Galvanic isolation
Technical Specifications
| supply Voltage | 24VDC (18–30VDC) |
|---|---|
| power Consumption | <3W (No Load) |
| outputs | 8x Transistor Outputs (PNP) |
| current Rating | 0.5A per channel |
| protection | Overcurrent & short-circuit detection, thermal shutdown |
| fail Safe | Configurable fail-safe state on comms loss |
| communication | RS485 (Modbus RTU Slave) |
| operating Temp | -25°C to +70°C |
| enclosure | IP20 Enclosure (UL94-V0) |
Telemetry Architecture
Supported Protocols
Modbus RTURS485
Target Applications
- Solenoid valves
- Contactors & relays
- Indicator lamps
- Motor starters control
