EXD-RECD500 RECD Control Panel
Industrial Retrofit Emission Control Device (RECD) control panel and cloud telematics system. Offers real-time emissions monitoring, differential pressure logging, and automated bypass actuator control.

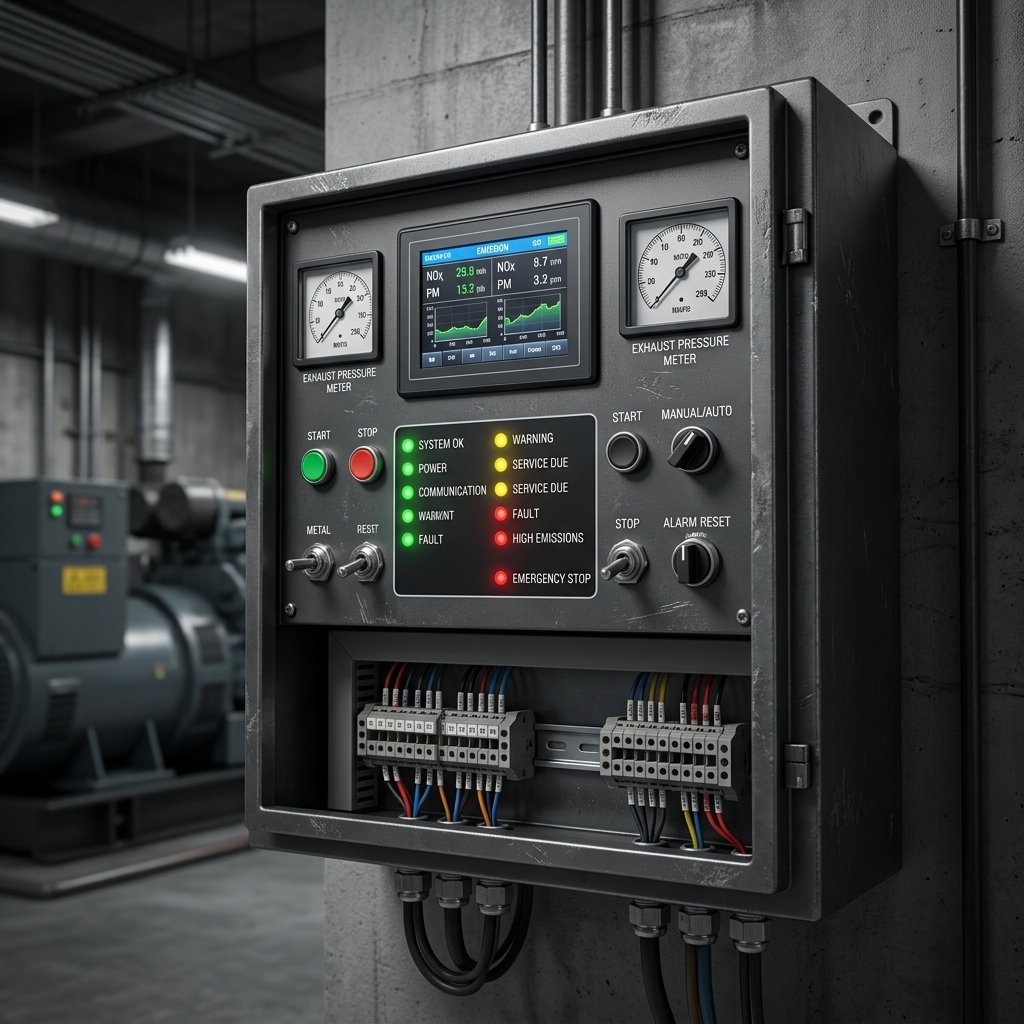

RENDER::EXD-RECD500
Industrial Features
Dual-temperature exhaust gas monitoring (Inlet/Outlet)
Differential pressure logging across filter elements
Automated bypass damper actuator control
Integrated GNSS for tamper alerts and geofencing
Secure 4G LTE cellular telemetry (MQTT over TLS 1.3)
Vibration-isolated IP65 industrial steel enclosure
Technical Specifications
| supply Voltage | 12V / 24V DC (9-36V Range) Engine Battery Systems |
|---|---|
| exhaust Channels | 2x K-Type Thermocouple Inputs (up to 800°C) |
| pressure Range | High-precision differential ±50 kPa sensor interface |
| cellular Comms | 4G LTE Cat-1 with internal e-SIM and GNSS |
| actuator Outputs | 1x 10A Solenoid Drive, 1x proportional 0-10V control |
| data Buffering | 16MB non-volatile storage for 30-day emission logs |
| enclosure | IP65 Ruggedized Steel Control Panel (Vibration Isolated) |
Telemetry Architecture
Supported Protocols
J1939Modbus RTUMQTT TLSHTTPS
Target Applications
- Retrofit Diesel Generator Emission Control
- Genset Exhaust Compliance Tracking
- Commercial Fleet Emission Monitoring
Need Custom Engineering?
Our R&D team can customize firmware and enclosures for high-volume OEM requirements.
