EXD-DI800 Digital Input Module
Industrial 8-channel digital input module designed for machine status monitoring, panel signal acquisition, and limit switch telemetry.

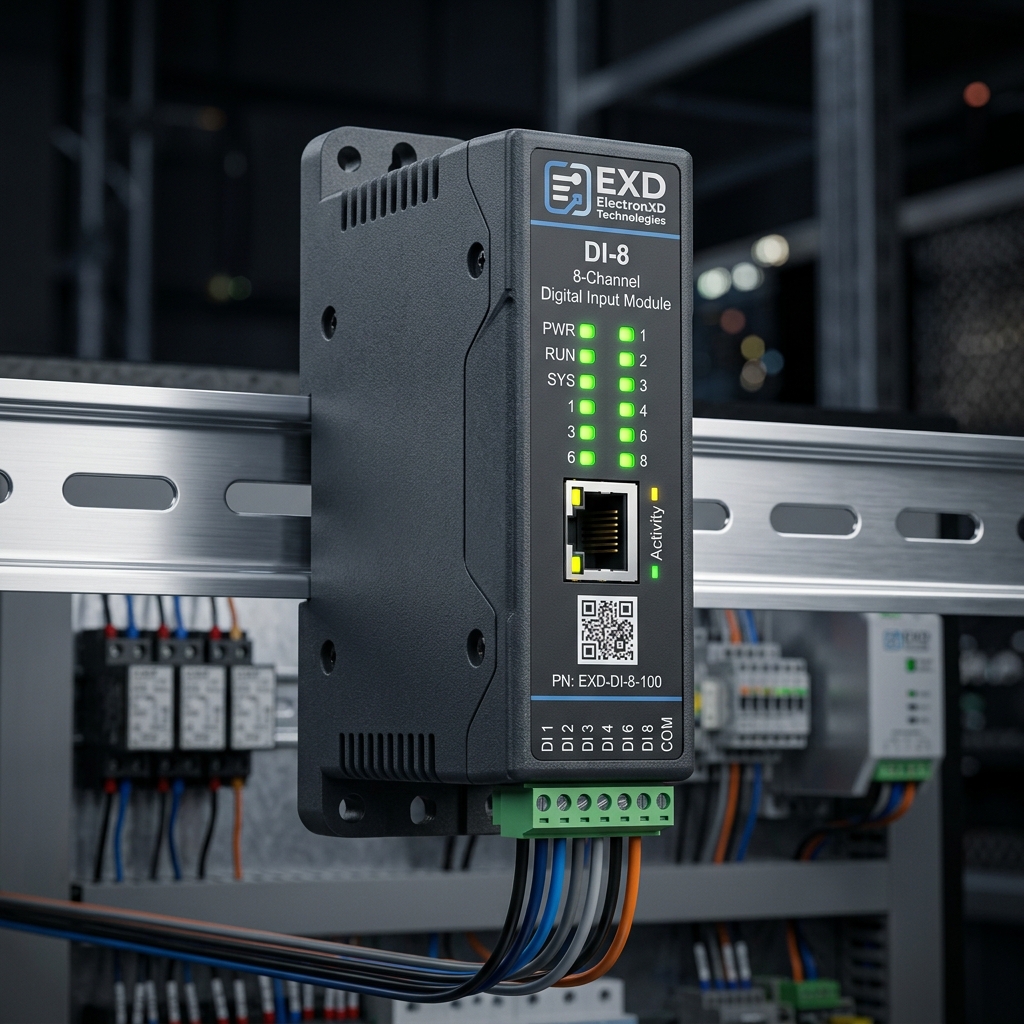

RENDER::EXD-DI800
Industrial Features
8-Channel 24VDC digital inputs
Opto-isolated channels for maximum protection
Logic ON threshold >15V
Software configurable debounce filtering
2 channels optional high-speed counter
3kVrms Galvanic isolation
Technical Specifications
| supply Voltage | 24VDC (18–30VDC) |
|---|---|
| power Consumption | <2.5W |
| inputs | 8x Opto-isolated 24VDC Inputs |
| threshold | Logic ON >15V, OFF <5V |
| input Current | ~5mA per channel |
| debounce Time | Software configurable |
| communication | RS485 (Modbus RTU Slave) |
| operating Temp | -25°C to +70°C |
| enclosure | IP20 Enclosure (UL94-V0) |
Telemetry Architecture
Supported Protocols
Modbus RTURS485
Target Applications
- Limit switch monitoring
- Push button panels
- Sensor feedback loops
- Machine status telemetry
Need Custom Engineering?
Our R&D team can customize firmware and enclosures for high-volume OEM requirements.
